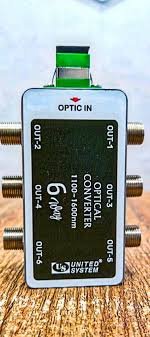

Ftth Node 6 O/P 1550

This node integrates a high-sensitivity photodiode, automatic gain control (AGC), and low-noise RF amplification, ensuring stable, high-quality signal output across all ports.

🔧 Technical Specifications:
Parameter Specification
Optical Input Wavelength 1550 nm (CATV signal)
Optical Input Power Range -15 to +1 dBm
RF Output Ports 6 (F-type connectors)
RF Output Level ≥ 75 dBμV (typical @ 0 dBm input)
RF Bandwidth 45 – 1000 MHz
C/N (Carrier-to-Noise) ≥ 50 dB
C/CTB, C/CSO ≥ 60 dB
AGC Range -7 dBm to 0 dBm
Return Loss ≥ 14 dB
Connector Type SC/APC (optical), F-type (RF)
Power Supply AC 110~240V or DC 12V/5V (model-dependent)
Power Consumption < 5 W
Operating Temperature -20°C to +55°C
Housing Aluminum alloy, shielded, wall-mountable

✅ Key Features:
6 RF outputs for distributing CATV signals to multiple end points

Converts 1550 nm optical signals into high-level RF

Built-in AGC ensures stable RF output despite optical fluctuations

Supports triple-play networks via RF overlay in PON systems

Compact, rugged design for indoor installation

Compatible with GPON/EPON RF overlay and analog/digital TV

🛠️ Applications:
FTTH / FTTB optical CATV reception

Multi-dwelling units (MDUs), such as apartment buildings or villas

Hotel and hospitality IPTV or analog TV distribution

CATV signal delivery in gated communities or smart buildings

Compatible with 1550 nm RF overlay in GPON/EPON networks
