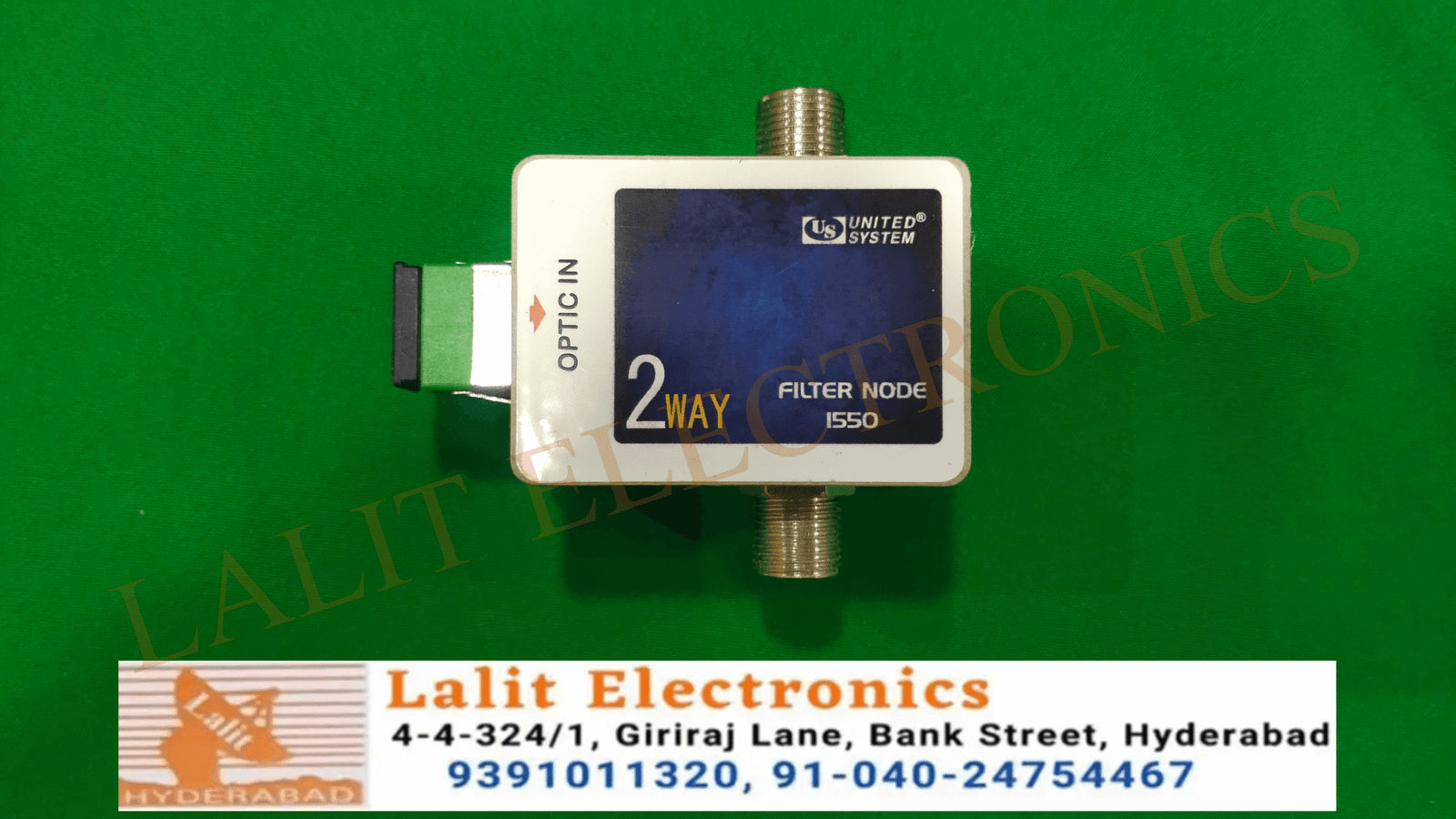

With two RF outputs, this node is ideal for small residential units, apartments, or small office environments, allowing for efficient CATV signal distribution over a single optical fiber. It is particularly suited for GPON/EPON RF overlay applications, providing high-quality video, voice, and data services over the same infrastructure.
🔧 Technical Specifications:
Parameter Specification
Optical Input Wavelength 1550 nm (for CATV signal)
Optical Input Power Range -15 dBm to +2 dBm
Number of RF Outputs 2 (F-type connectors)
RF Output Level ≥ 75 dBμV (typical at 0 dBm optical input)
RF Frequency Range 45–1000 MHz
C/N (Carrier-to-Noise) ≥ 50 dB
C/CTB, C/CSO ≥ 60 dB
Return Loss ≥ 14 dB
Connector Types SC/APC (optical), F-type (RF)
Power Supply External (no internal power supply)
Power Consumption Passive (low power consumption, < 1 W)
Operating Temperature -20°C to +55°C
Mounting Type Wall-mountable, compact design
✅ Key Features:
2 RF outputs to distribute CATV signals across multiple endpoints
Converts 1550 nm optical signals into RF signals for video and TV distribution
High optical sensitivity ensures stable reception even with low input power
Compact design fits in tight spaces and offers easy installation
External powering required, making it energy-efficient and adaptable to existing systems
Compatible with GPON/EPON networks with RF overlay for TV signal distribution
SC/APC optical connector and F-type RF connectors for standard setups
Low noise and high signal quality with AGC (Automatic Gain Control) for stable output
🛠️ Applications:
FTTH/FTTB applications in residential buildings, apartments, or small offices
CATV distribution to two user locations within a home or office
RF overlay systems for GPON/EPON networks offering combined data, voice, and video services
Multi-room or multi-TV installations requiring a dual-output solution
Ideal for environments that require simple, low-maintenance installations with minimal space consumption
