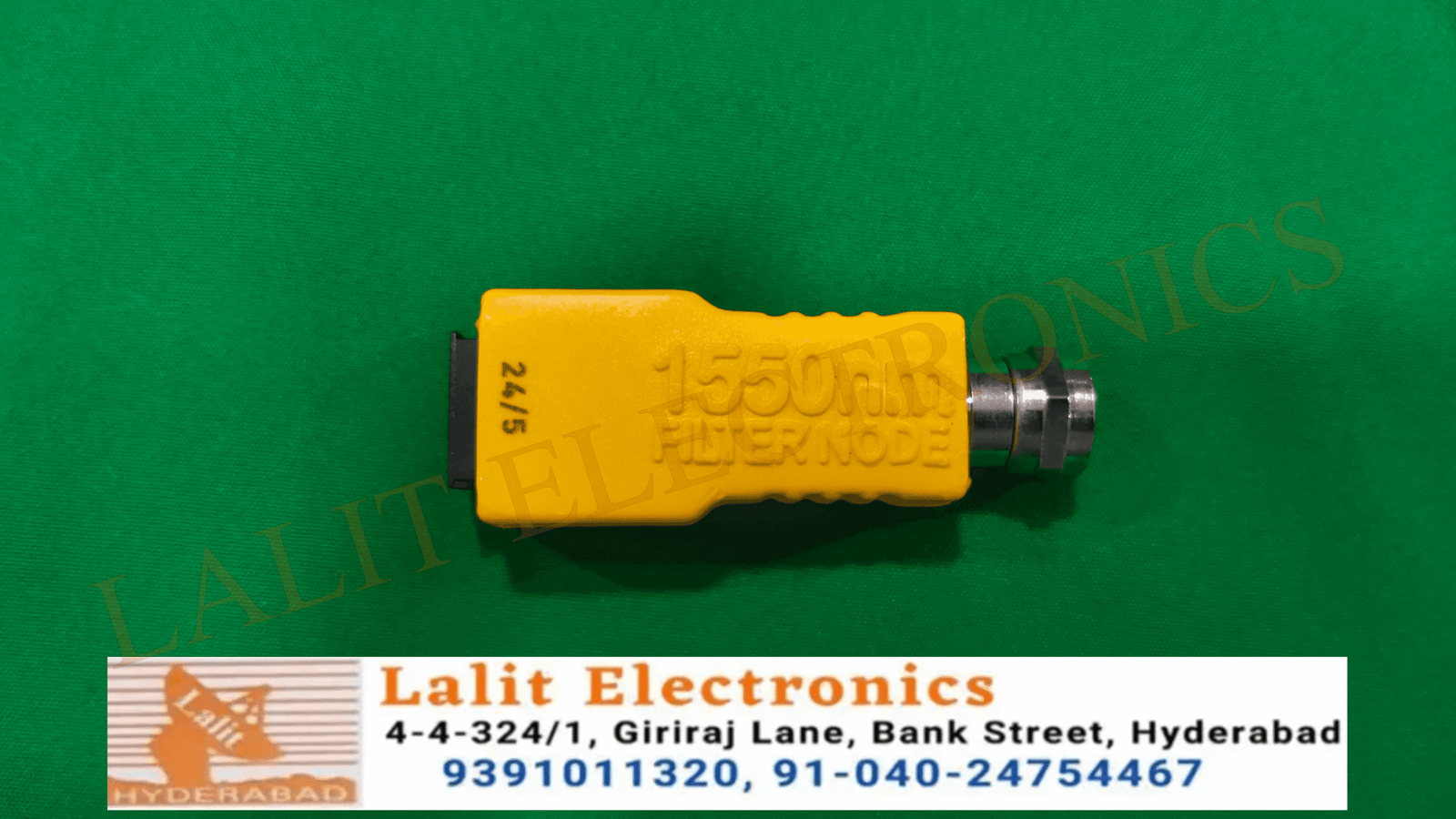

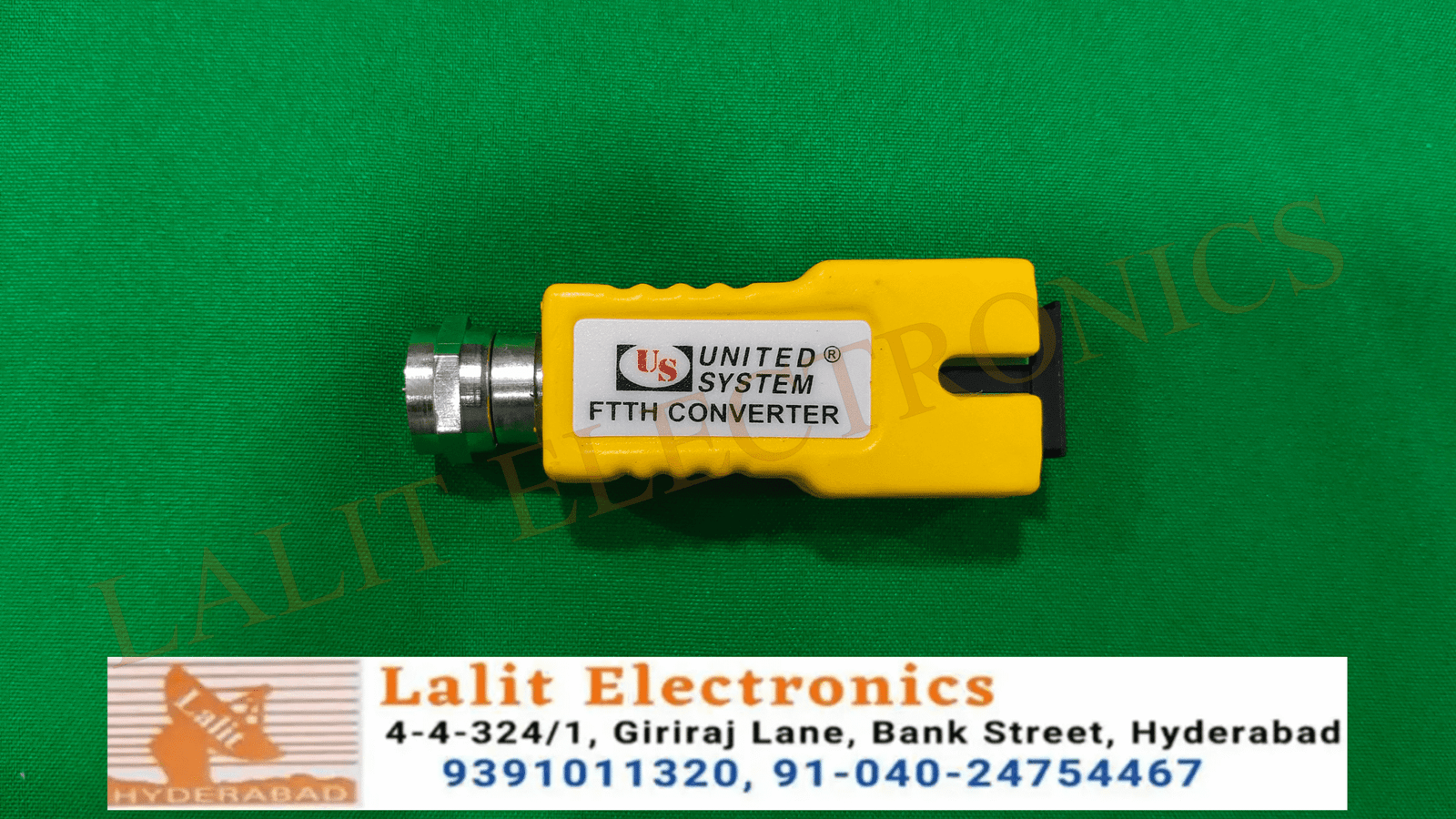

Ideal for homes, small businesses, or hotel rooms, this node supports triple-play services (video, voice, data) over a single optical fiber and is compatible with industry-standard SC/APC connectors and F-type RF output ports.
🔧 Technical Specifications:
Parameter Specification
Optical Input Wavelength 1550 nm (CATV RF overlay)
Optical Input Power Range -15 dBm to +2 dBm
RF Output Ports 1 (F-type connector)
RF Output Level ≥ 75 dBµV (typical @ 0 dBm optical input)
Frequency Range 45 – 1000 MHz
C/N (Carrier-to-Noise) ≥ 50 dB
C/CTB / C/CSO ≥ 60 dB
Return Loss ≥ 14 dB
Connector Type SC/APC (optical), F-type (RF)
Power Supply Available in AC-powered or passive models
Power Consumption < 3 W (for powered model)
Operating Temperature -20°C to +55°C
Mounting Type Wall-mountable or desktop design
✅ Key Features:
1 RF output port for direct connection to a TV or RF splitter
Converts 1550 nm optical signal to standard RF output
Supports analog and digital TV distribution (DVB-C, PAL, NTSC, etc.)
Compatible with GPON/EPON networks using RF overlay
High signal quality and low noise for reliable long-term performance
Compact size for easy in-home or in-room installations
🛠️ Applications:
FTTH/FTTB last-mile optical CATV reception
Triple-play service delivery (video, voice, data)
Optical CATV signal conversion in homes, apartments, hotel rooms
Compatible with PON RF overlay systems using 1550 nm wavelength
Ideal for multi-TV homes when used with an external RF splitter
